Understanding the various cables and connectors used in PA systems is essential for building an efficient and safe sound system. Each is designed to suit specific equipment and situations, and their proper use maximizes system performance while minimizing potential risks.

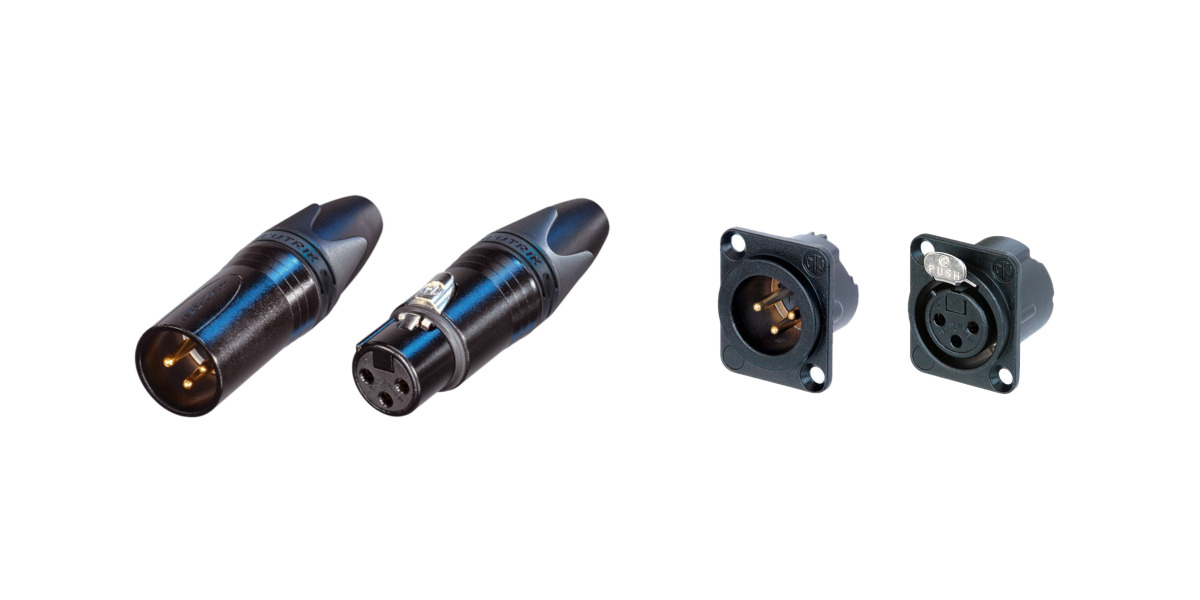

XLR Connector

Primarily used in professional audio equipment such as microphones, mixers, and PA systems.
It consists of 3 pins, suitable for balanced audio signal transmission and resistant to noise.
Available in male (M) and female (F) connectors.

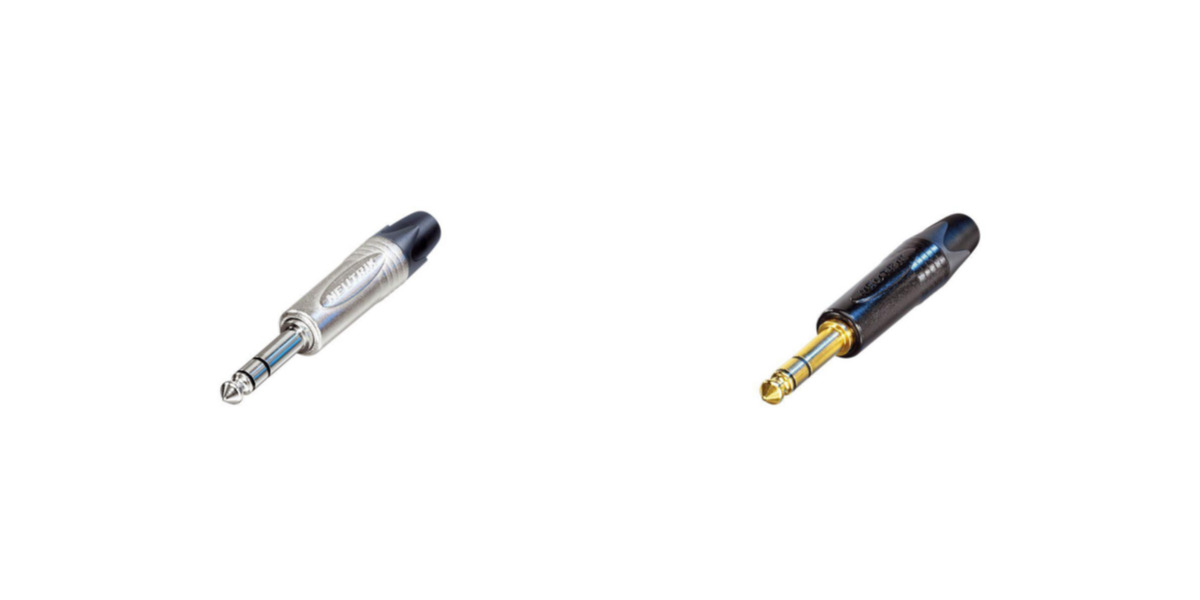

TRS Connector (Tip, Ring, Sleeve)

Available in 1/4 inch (6.35mm) or 3.5mm versions, used for transmitting stereo audio signals or balanced mono audio signals.
Commonly used in audio interfaces, headphones, and professional audio equipment.

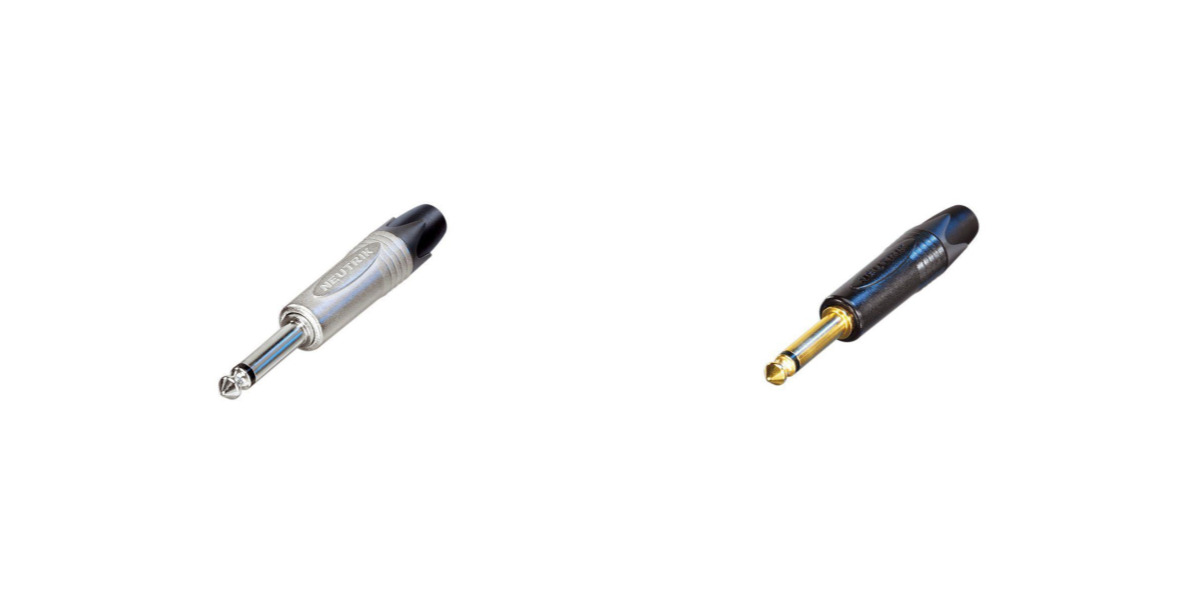

TS Connector (Tip, Sleeve)

Primarily used for unbalanced mono signals, and is commonly used for connecting electric guitars, keyboards, and other musical instruments.

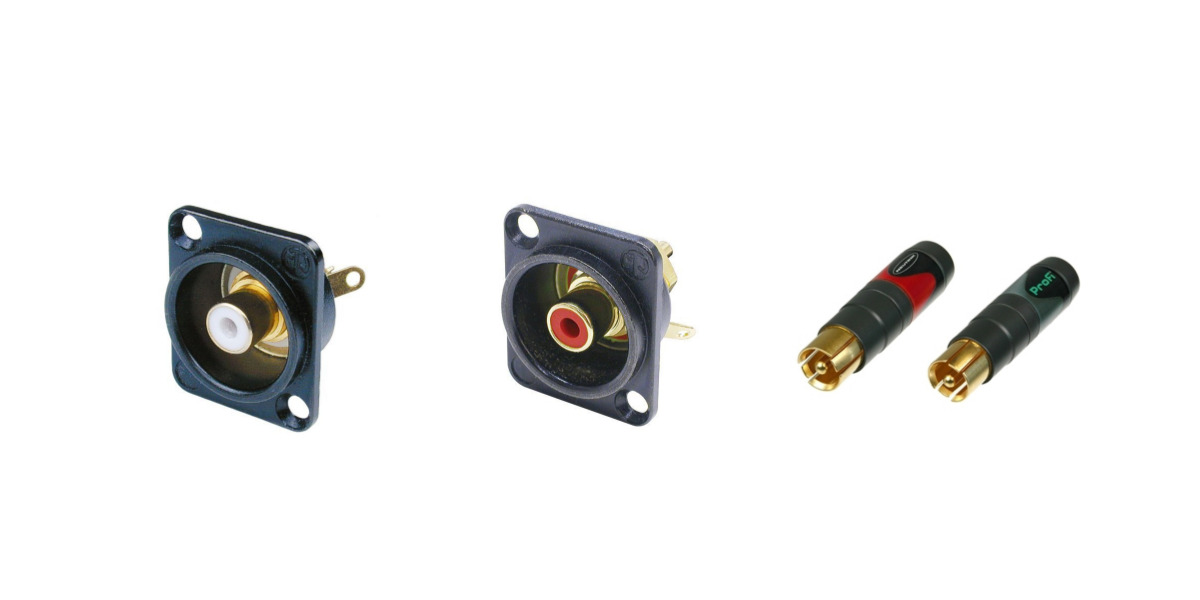

RCA Connector

Used in stereo audio systems, home theaters, and video equipment.
It is used for unbalanced signal transmission and is commonly color-coded as red and white or black for separating left and right channels.

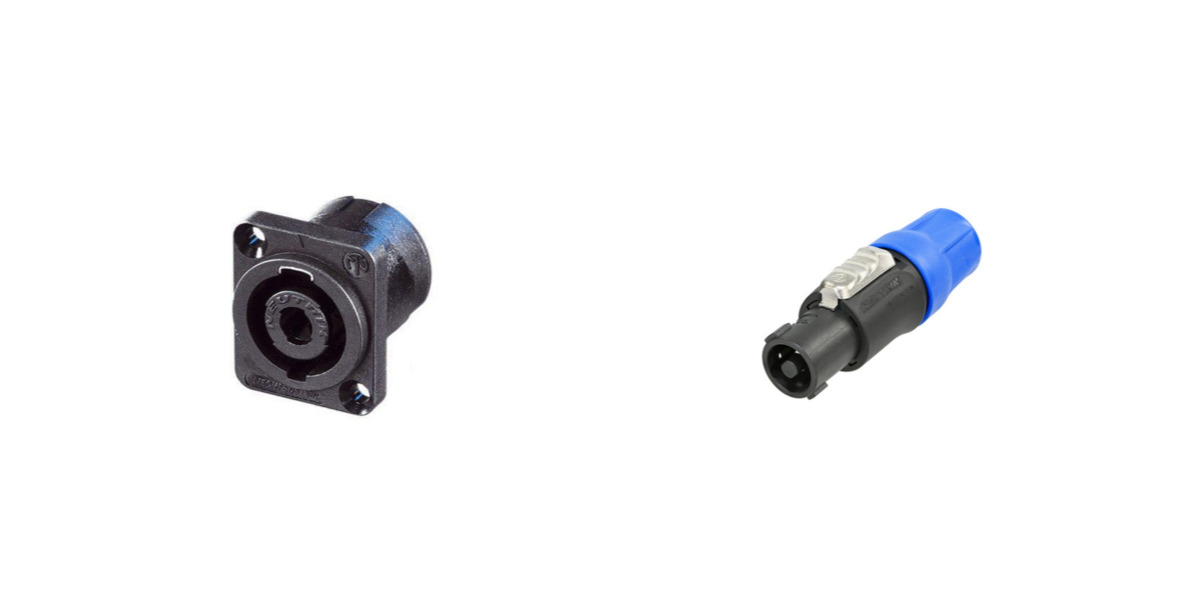

Speakon Connector

Primarily used for connecting power amplifiers to speakers in professional audio systems.

Features a locking mechanism for secure connections and is suitable for high-power signal transmission.

Balanced Cable

Balanced cables are resistant to noise and use three wires: Hot, Cold, and Ground. They are well-suited for maintaining signal accuracy in environments with high noise susceptibility.

Unbalanced Cable

Unbalanced cables use two wires: Hot and Ground, and are typically used with devices that have a high signal-to-noise ratio. However, when using long cables, it's advisable to convert the signal to a balanced one using a DI box.
