Recently, there has been an increase in people opting for 7.1.6 channel surround systems to enhance their experience when watching movies or listening to music. The 7.1.6 channel system uses more speakers than traditional 5.1 or 7.1 channels to create a more immersive sound experience. Compared to traditional setups, the 7.1.6 channel system delivers sound not only from the front, rear, and sides but also from the ceiling.

While the 7.1.6 channel surround system offers immersive audio effects, it can be costly, so it's important to consider budget when selecting an appropriate system. Currently, the 7.1 channel surround system is more commonly used.

Meaning of 7.1.6 Channel Surround Numbers

The '7' indicates the number of speakers placed in the front, left/right, and rear. Typically, this refers to 3 speakers in the front (left/right/center), 2 speakers on the sides (left/right), and 2 speakers in the rear (left/right).

The '1' represents the number of subwoofers placed on the floor in the front center.

The '6' signifies the number of speakers placed on the ceiling. Typically, 2, 4, or 6 speakers are arranged in this configuration.

Speaker Setup

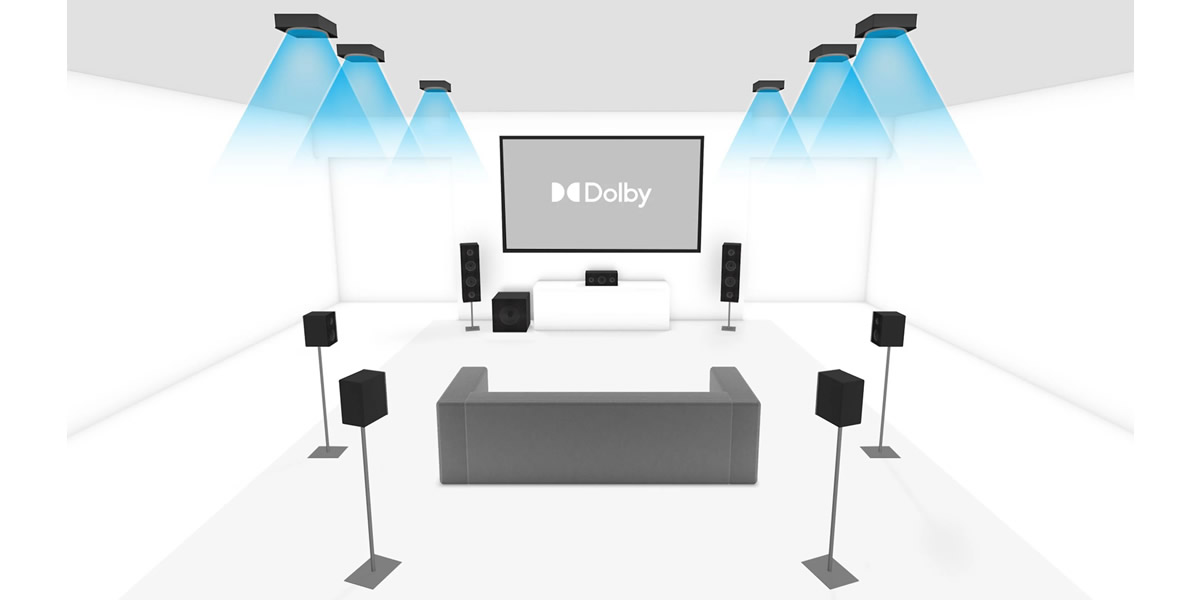

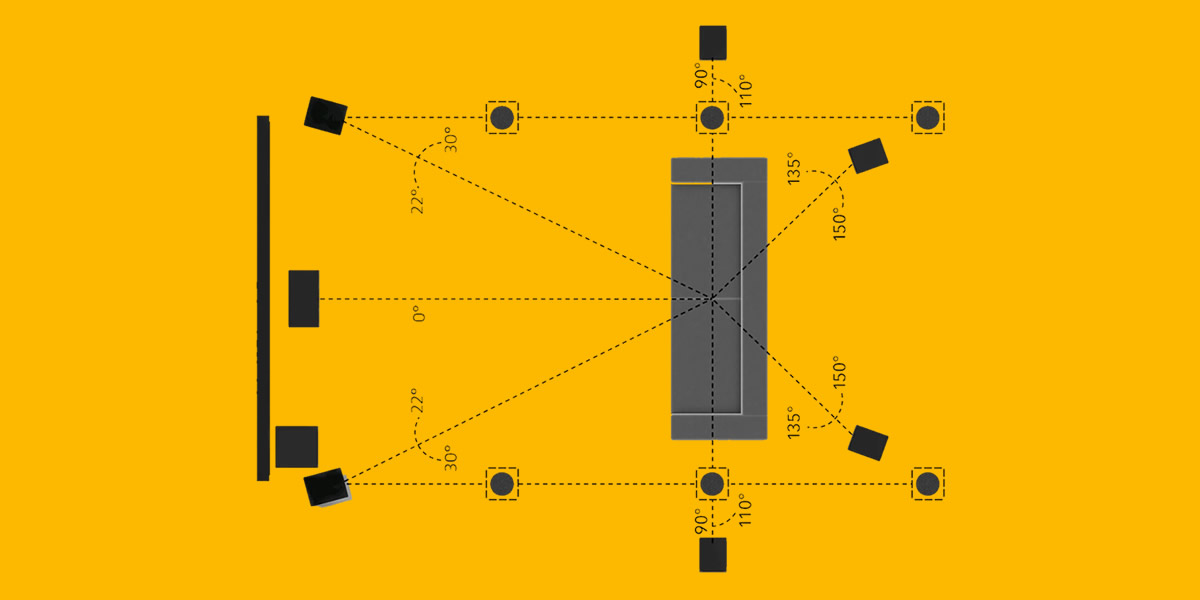

You can configure the speaker layout according to the diagram above. If the ceiling is high, using pendant speakers rather than ceiling-recessed speakers is advisable. Consider installation methods to ensure the speakers blend harmoniously with the space.

Overhead speakers

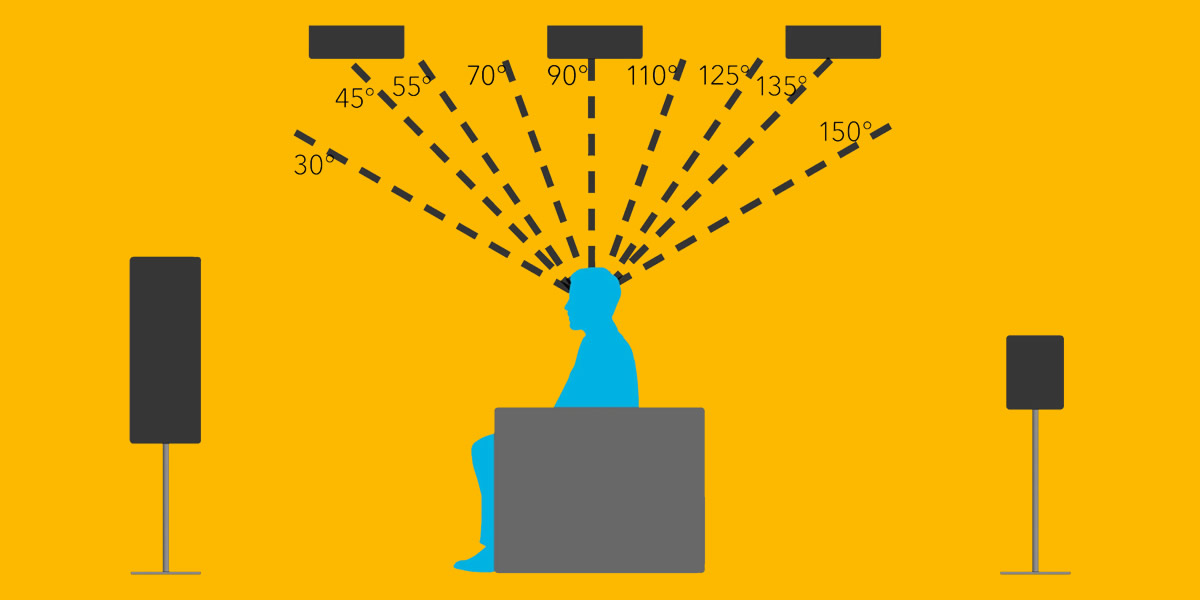

When using 2 overhead speakers, install them at a 65-degree angle. When using 4 speakers, install them at 45-degree and 135-degree angles. For 6 speakers, arrange them as shown in the diagram above.

Cable Infrastructure

Some speakers require separate amplifiers for connection, while others have built-in amplifiers and require connection for signal and power.

If speaker cable installation is necessary, you can choose one of the following options:

• BELDEN. 5100UP (14AWG)
• CANARE. 2S9F (14AWG)
• SOMMER. SP225 (13AWG)

Powered speakers with built-in amplifiers require signal cables, power speaker cables, and LAN cables for control.

If installation of cables for powered speakers with built-in amplifiers is necessary, you can use the following cables. Note that network cables may not be required for all speakers.

• CANARE. L-2T2S
• VCTF 1.5SQ 3C
• CAT5E

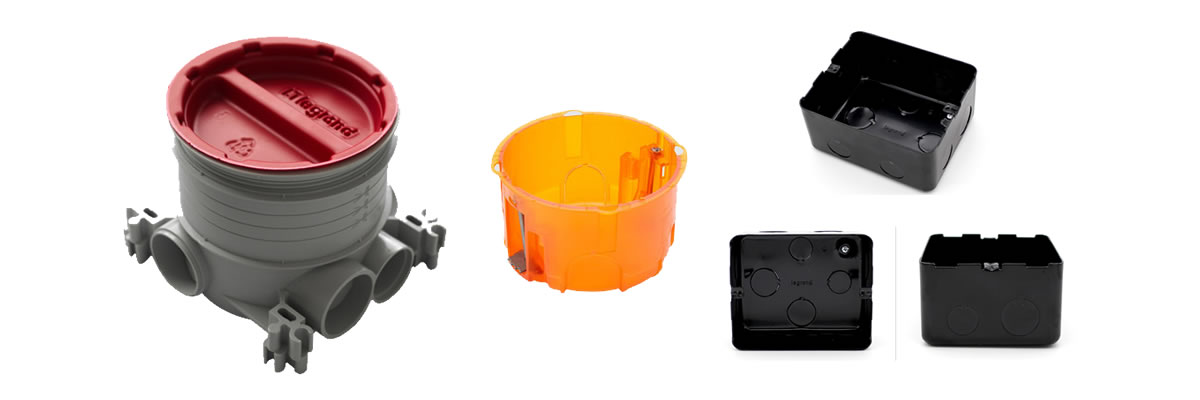

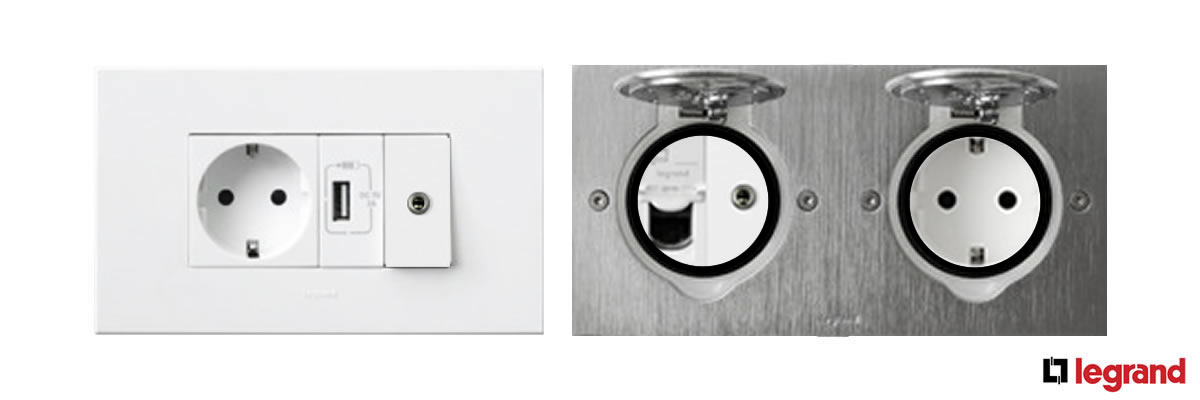

To install the panel, you need to install a back box suitable for the panel size. Consider various installation positions and purposes such as concrete embedding, desktop surfaces, and walls when installing the back box.

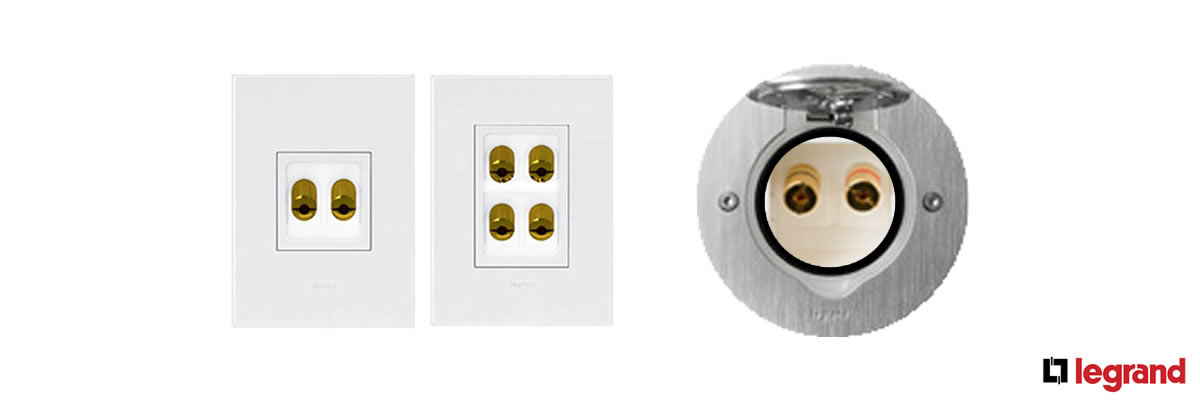

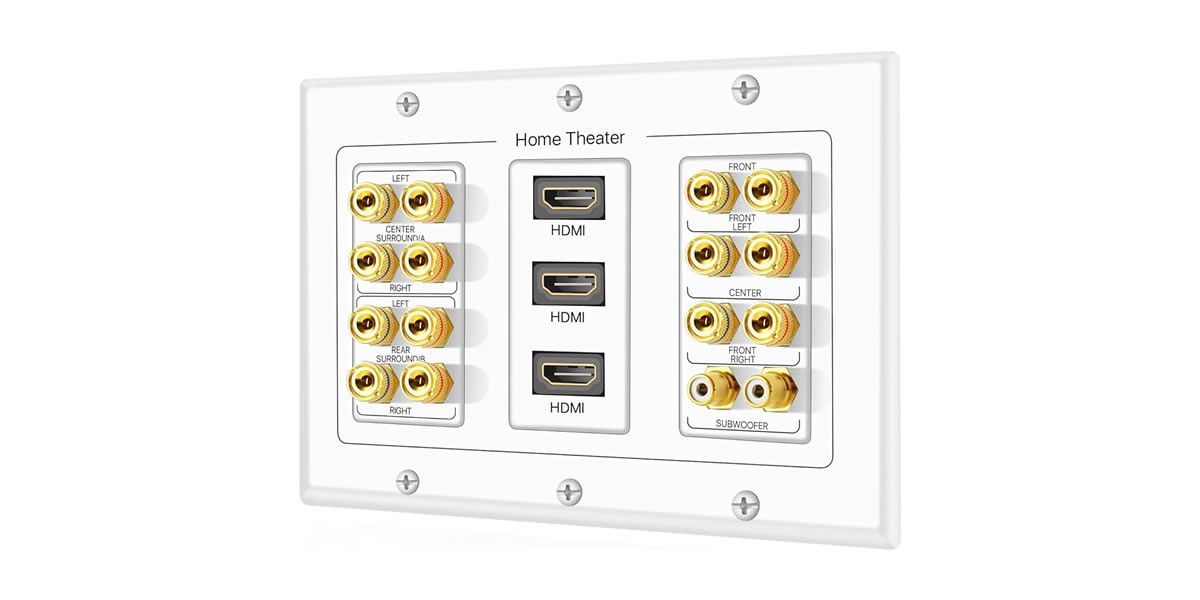

The panel cable for speaker connections is typically connected to the AV receiver (surround processor) wall panel located beneath the TV (or screen) screen.

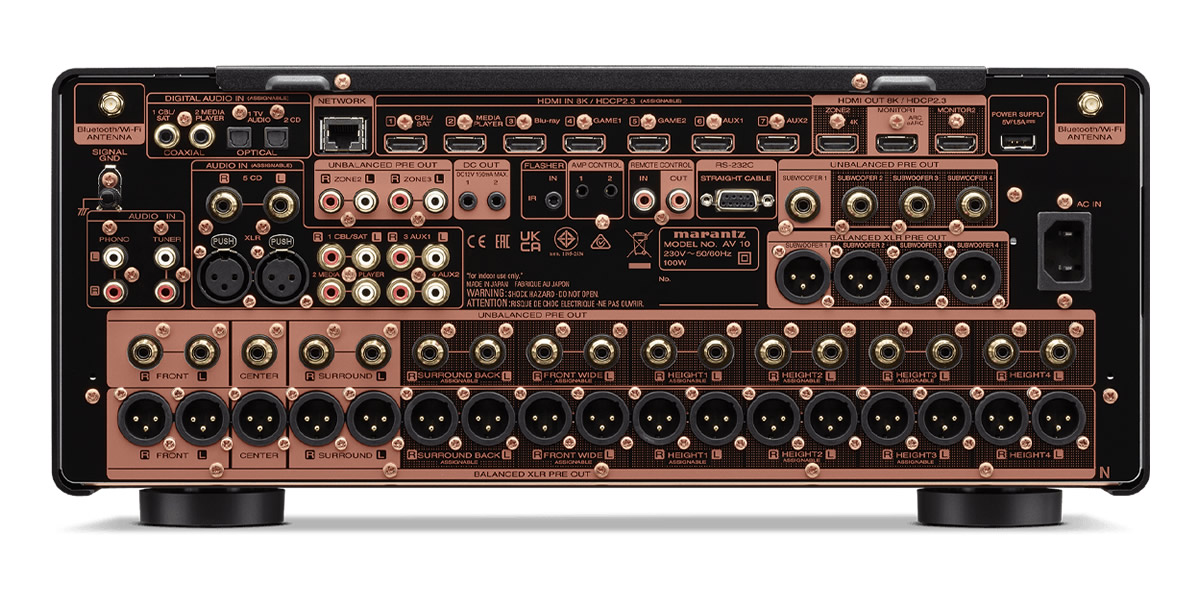

Surround Processor - Dolby Atmos

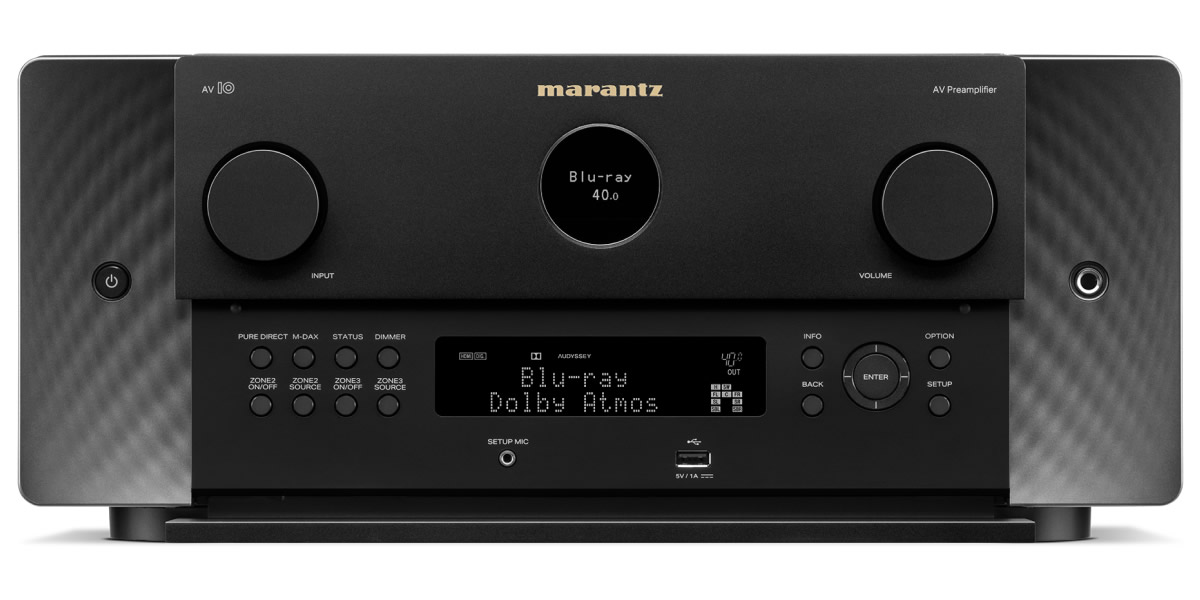

Dolby Atmos is an audio technology that provides more immersive sound when watching movies or listening to music. To implement this technology, a Dolby Atmos processor is required. AV receivers are devices that implement such functionality by considering factors such as the size and shape of the space, speaker positions, and spacing to provide optimal sound.

With a Dolby Atmos processor, you can achieve more immersive sound when watching movies or listening to music. Unlike traditional stereo methods where sound is delivered only left and right, Dolby Atmos delivers sound not only horizontally but also vertically, to the ceiling and walls. Using a Dolby Atmos processor allows for a more vivid experience when enjoying movies or music.

Generic Speaker

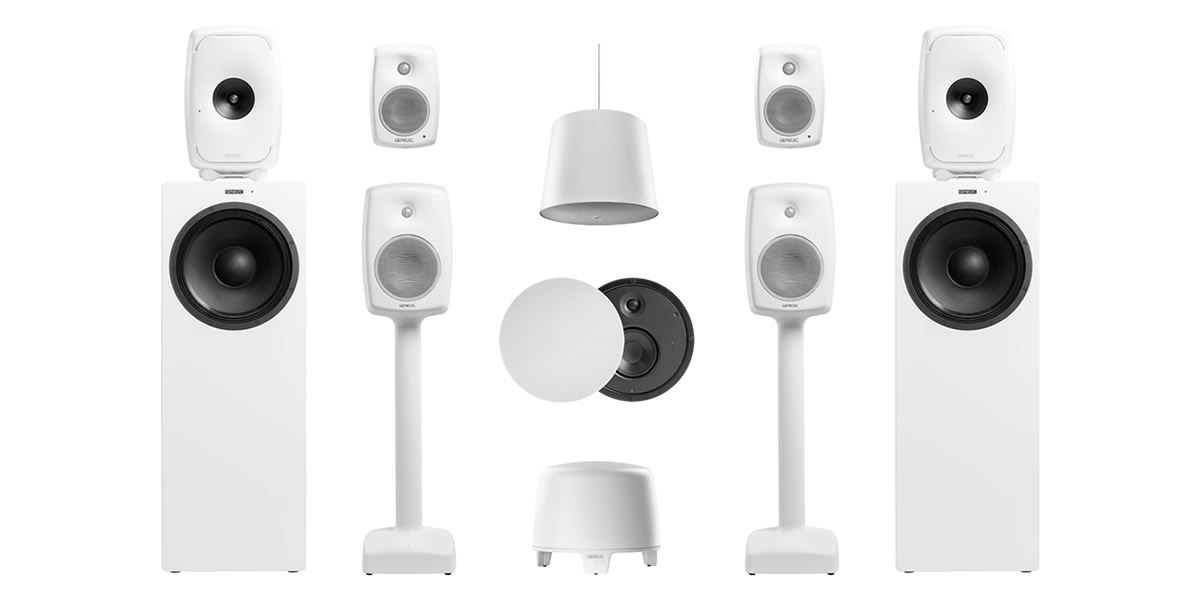

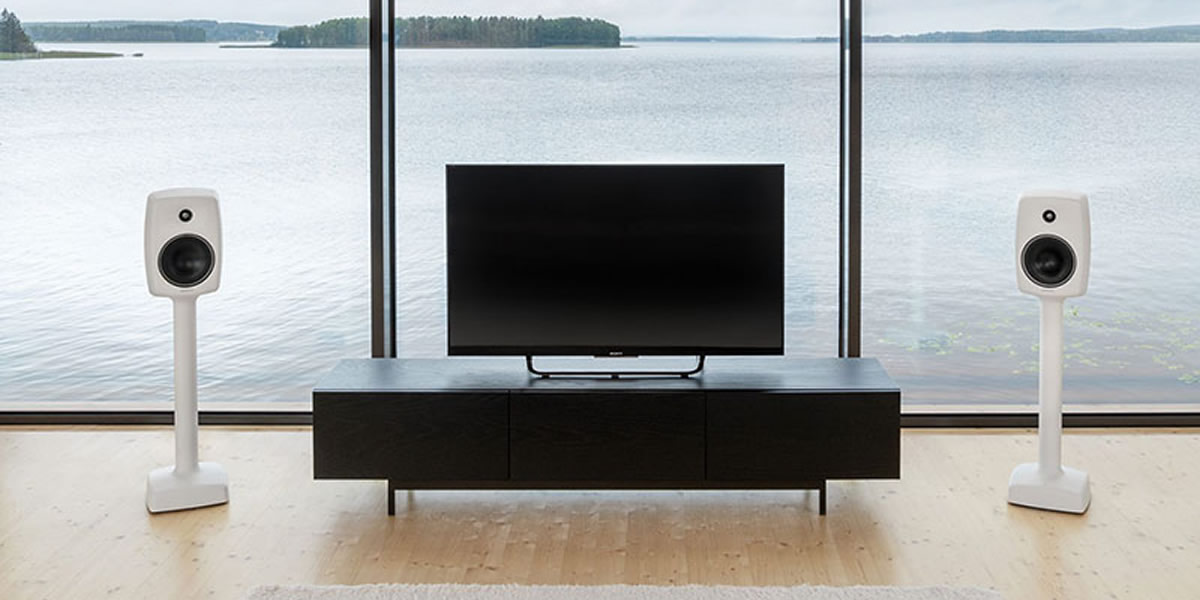

Genelec is a Danish specialist in audio equipment, offering various models of studio and home theater speakers with high resolution, accurate tonality, emphasis on low frequencies, and spatial optimization technology, ensuring durability.

All speakers are internally amplified and can be tuned to fit the space. Genelec provides various installation brackets and also produces ceiling-mounted and pendant speakers with built-in amplifiers. Considering Genelec home theater speakers is a good choice when setting up an installation for home theater systems.

Sonos Speaker

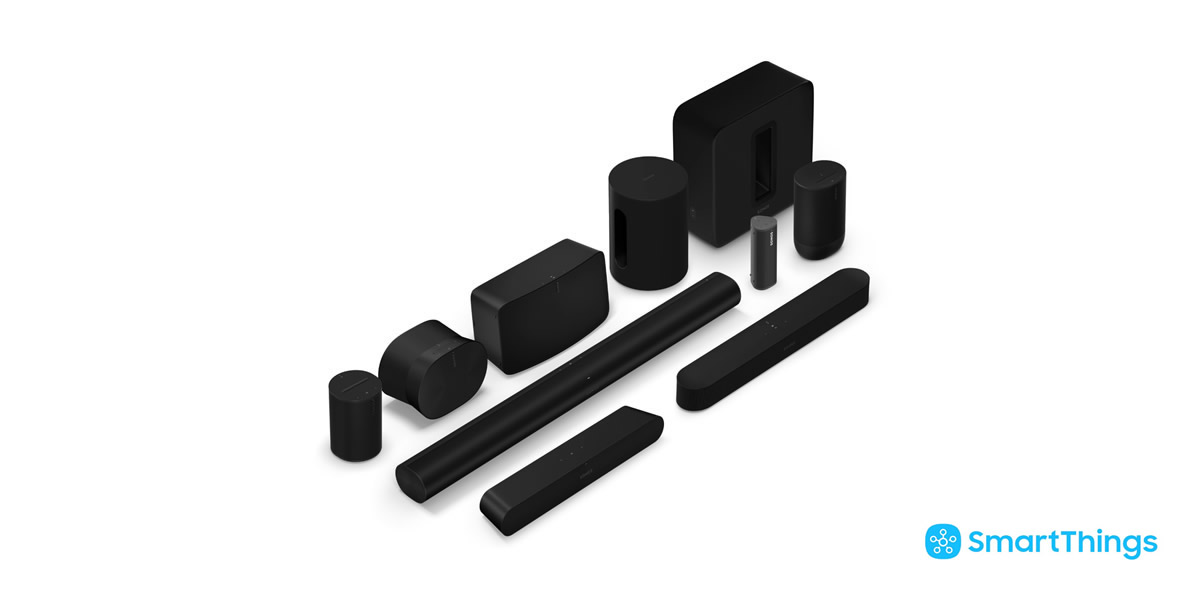

Sonos is a US-based audio equipment manufacturer, well-known for its popularity in the home theater speaker market. It supports wireless connectivity, allowing for freedom of movement without the need for speaker-to-speaker cable connections. It is compatible with various operating systems such as Smartthings, Apple iOS, Google Android, and Windows, enabling music playback from multiple devices.

With these features, users can conveniently control the speakers and enjoy high-quality music or videos. Considering Sonos speakers when setting up a hassle-free home theater system can be a great choice.
