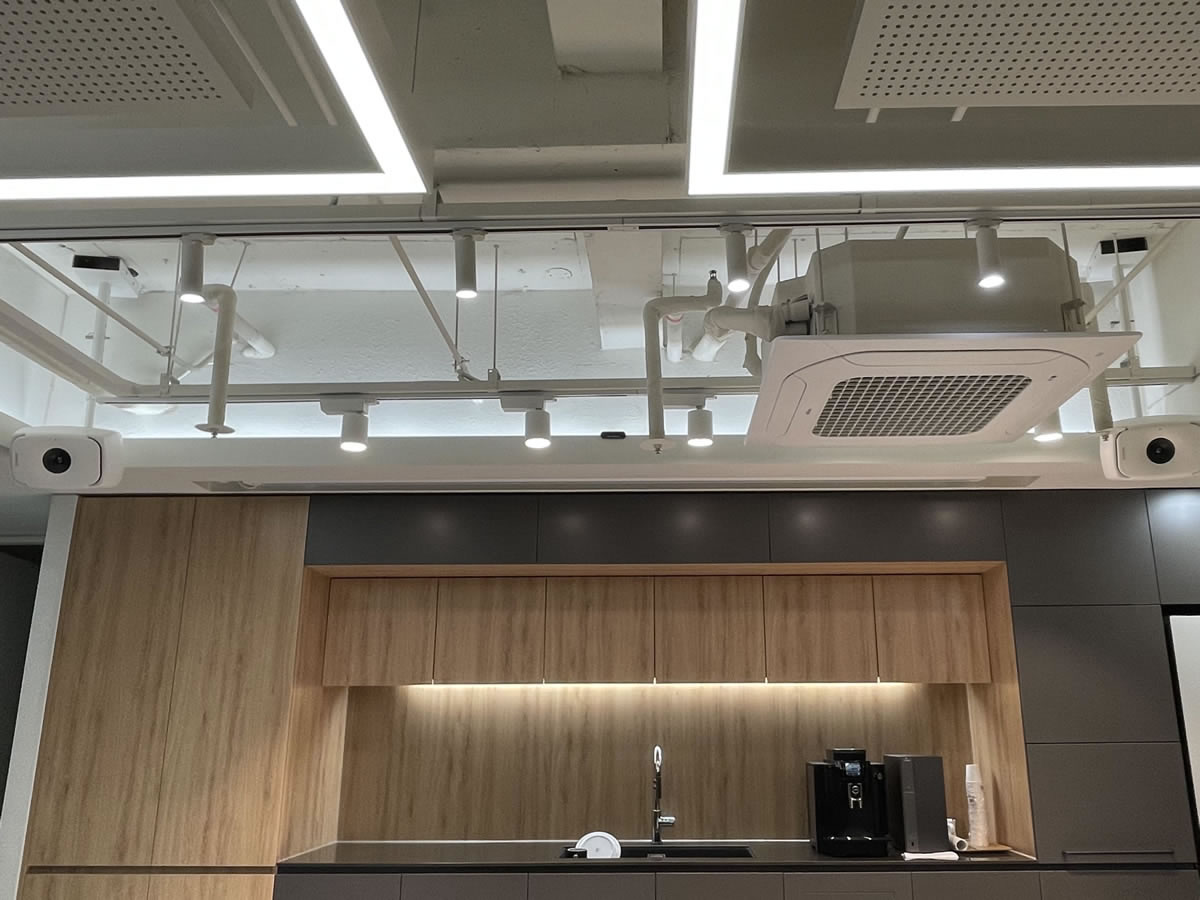

A lounge equipped with presentation, music listening, and TV viewing capabilities.

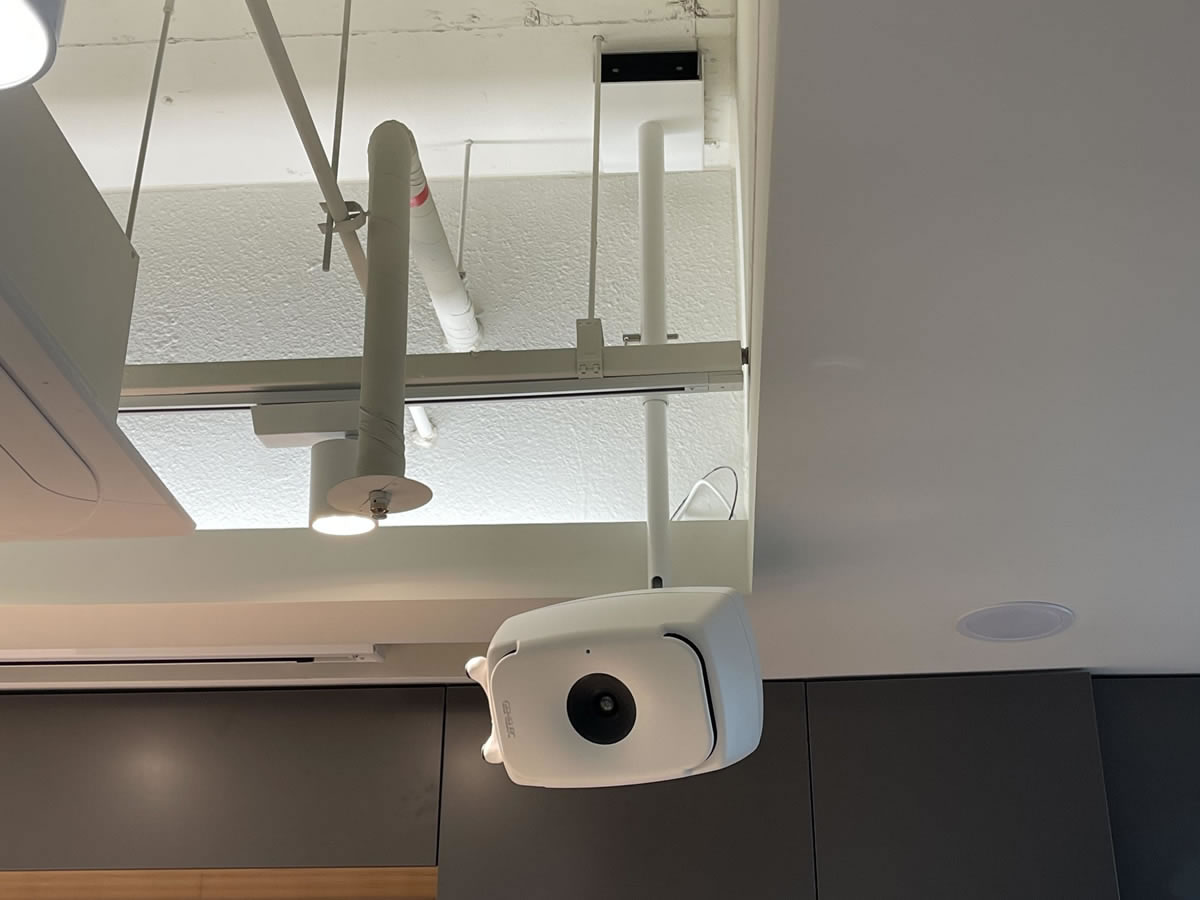

The audio features studio-quality monitor speakers (250w, 3-way) with a flat sound profile, and wireless microphones enable clear voice transmission throughout the lounge. It supports both analog and wireless Bluetooth 5.0 connections for music playback.

Video is supported by a high-end 120-inch screen and a laser beam projector with 6,000 ANSI lumens brightness. It provides ample screen size and brightness for the 20-square-meter lounge space. Laptop video connections are available both through wired HDMI cables and wirelessly. Laptop audio can be played through HDMI ports or wirelessly via Bluetooth.

In the field, unexpected situations always arise. While most try to find quick solutions through shortcuts, they present the right new alternatives and move swiftly. That is why I work with them.

Park

Space Planning Consultant

The wall-mounted integrated control buttons are programmed with multiple modes. With a single button press, all equipment operates in a complex manner. In most cases, pressing other buttons while an operation is in progress will not work or may cause issues. In contrast, it is programmed to operate in the last selected mode regardless of the circumstances.

Project Infomation

  • PurposeLounge & Meeting Room
  • Number of Seats30 seats
  • Volume / Area158㎥ / 66㎡ (20py)
  • Length / Width / Height11m / 6m / 2.4m
  • Auxiliary Roomconference room, focus room
  • Completion DateDecember 2021

Specification

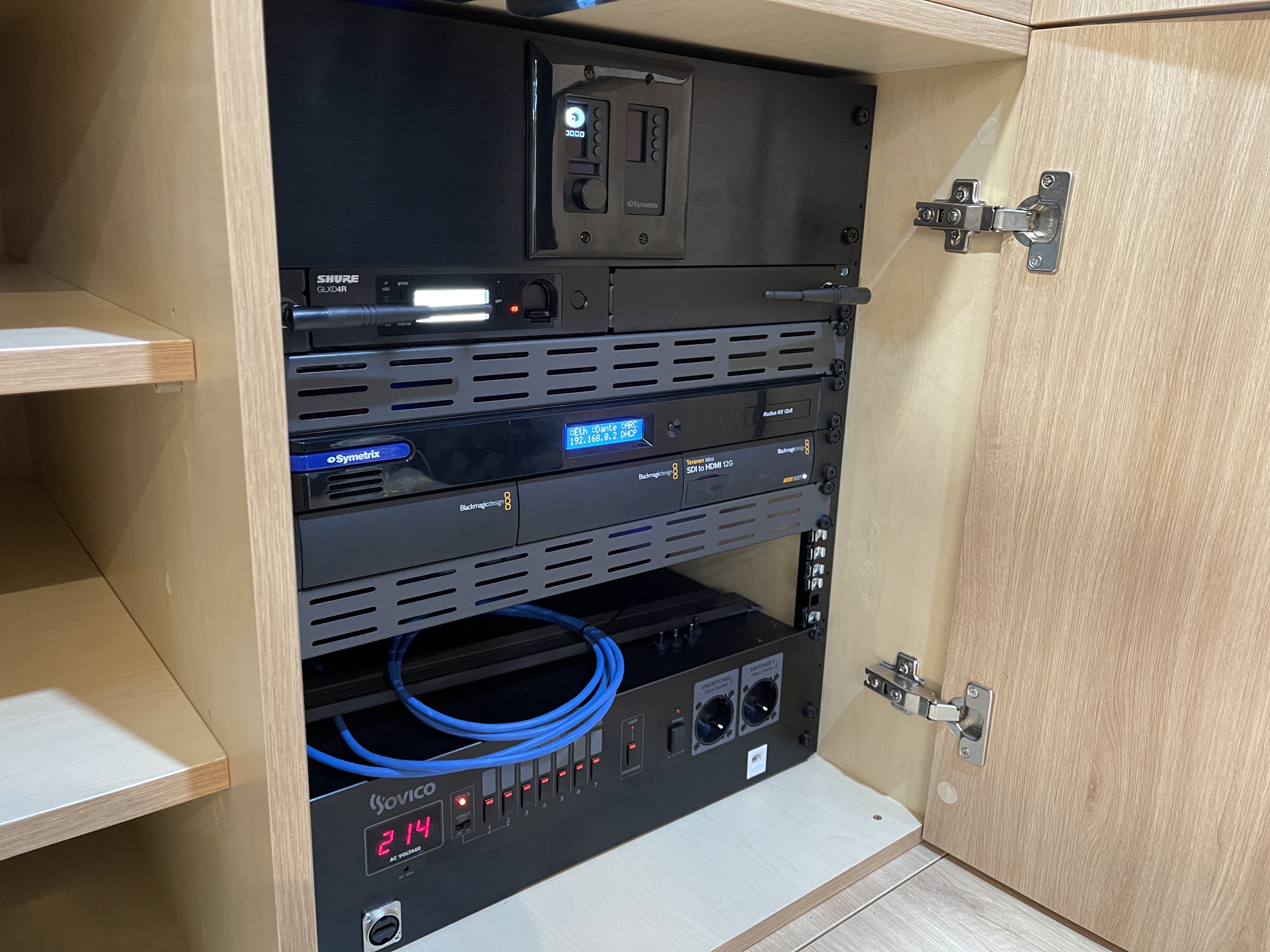

  • Audio8341AW, RADIUS NX 12x8, SLXD24/BETA87A
  • VideoGEC2-120, VPL-PHZ60, ATEM Television Studio Pro, VS AD2
  • Integrated ControlRADIUS NX 12x8, W4
