Supex Hall

The Supeks Hall, situated at SK Hynix's Icheon M14, possesses a unique allure. This hall has played the role of a primary auditorium for a long time and is designed with a fitting capacity of 453 seats to accommodate various operational needs of the users. Due to the users' relentless attention and effort, it remains immaculately maintained and continually showcases its modern upgrades.

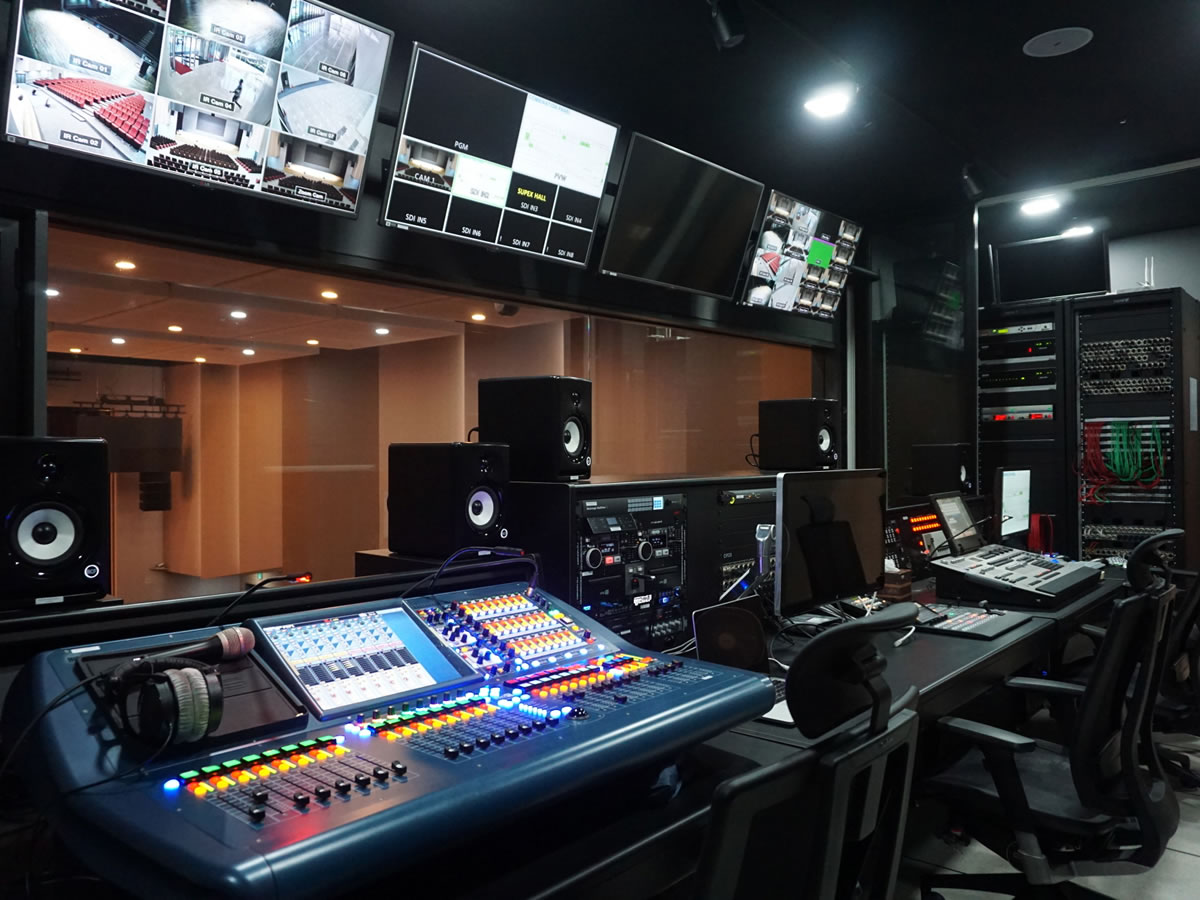

To cater to various corporate seminars, meetings, as well as simple events and ceremonies, it is equipped with dual 18-inch subwoofers and dual 10-inch line array speakers. Additionally, to ensure audio clarity for the rear seats, column-type beam-steering delay speakers have been installed.

The 340-inch LED display is built with high-quality and stable devices to minimize time delays between equipment. Within the hall, several FHD high-resolution PTZ cameras and CCTVs are installed. Notably, the CCTV is designed with a highly durable SMPS for its power supply and is strategically located for easy access, ensuring a quick response in case of malfunctions.

The stage lighting blends both LED and halogen types, with a 48-channel dimmer installed for adjusting the lighting for the stage and the audience. The halogen lights, given their uncertain lamp replacement cycles based on usage, are susceptible to sudden failures. To preempt this, the AVStumpfl show controller monitors the lamp's usage time, offering users insights on when replacements are due and other relevant statistics.

To cover the vast space, Supeks Hall has incorporated a 5G wireless intercom system that supports multiple APs, effectively mitigating communication blind spots.

Project Infomation

  • PurposeAuditorium
  • Number of Seats453 seats
  • Volume / Area5,130㎥ / 760㎡ (230py)
  • Length / Width / Height35m / 21.5m / 5~8.5m
  • Completion DateAugust 2015

Specification

  • AudioS10, A218, PC5, QFLEX 16, PLM12K44, IPD2400, PRO2, DL251, DN9650, DN0D4500, DN700R, DT 770, AUDIOBOX 1818VSL, , M32, DL32, Ayra5, EW 300, UA874X, A1031, ASA1, AB3-C, DN200
  • Video340 inch 16:9 LED Display (4mm), SmartHub 20×20, Multiview 16, AW-UE60, AW-RP50, AV-HS410E
  • Stage LightSource 4 Zoom, Mac Viper Profile, Mac Quantum Wash, Par64, I48E 5kW, M1, Remembrance
  • Stage MachinerySET BTN 14L 2.2KW, LIGHT BTN 14L 2.2KW, DRAW CURTAIN 17L 7H 4KW, HEAD CURTAIN 17L 1H, CEILING LIGHT 12L FIX

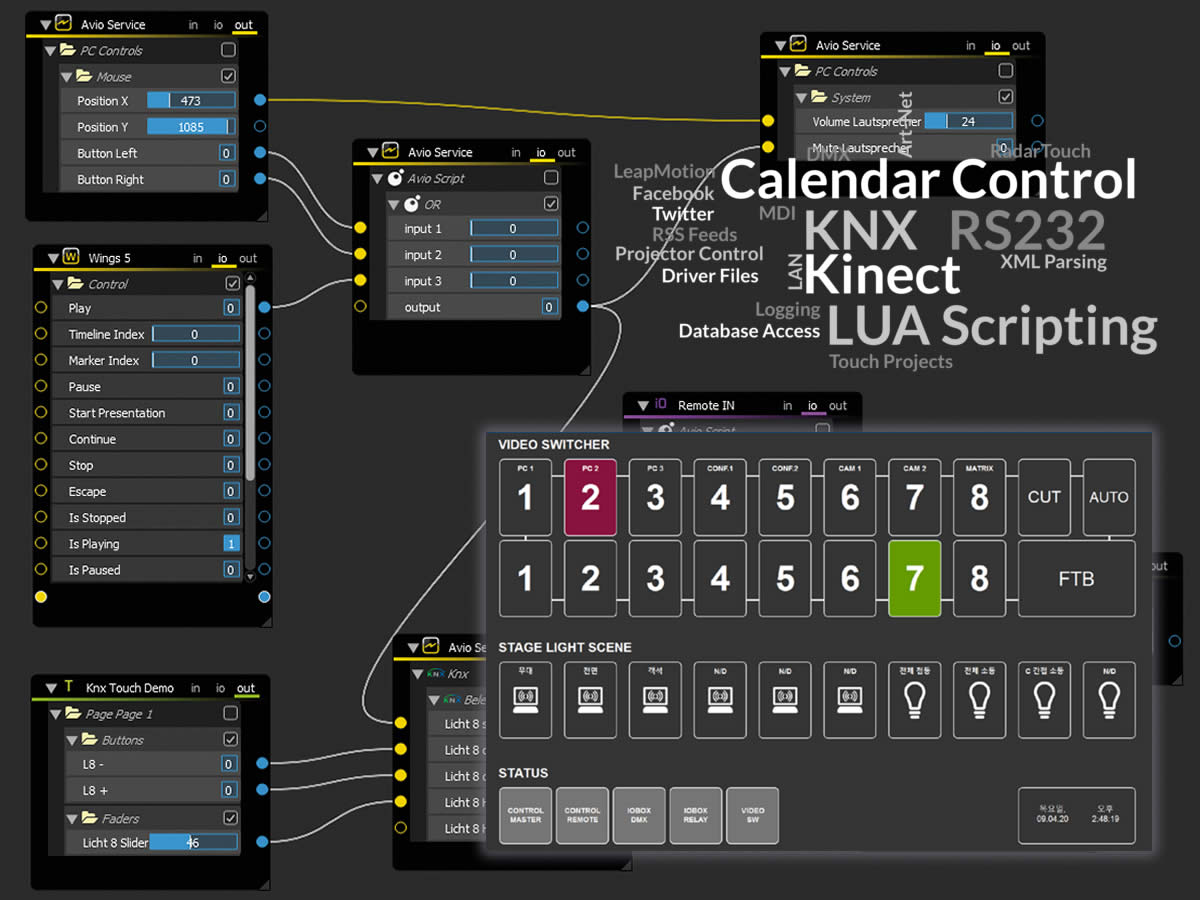

  • Integrated ControlAVStumpfl Wings
  • IntercomBS850, RA100
