This is a multi-purpose black box theater designed to operate holographic content.

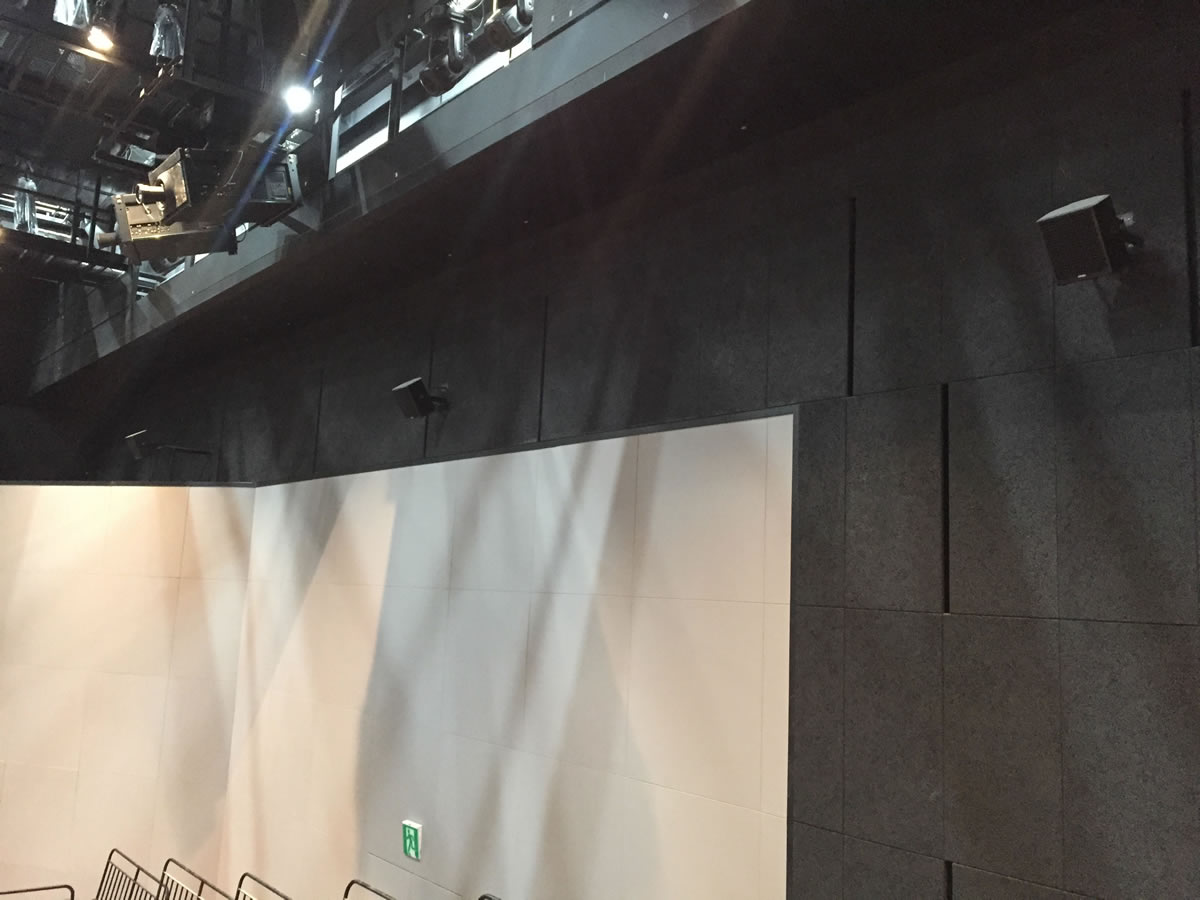

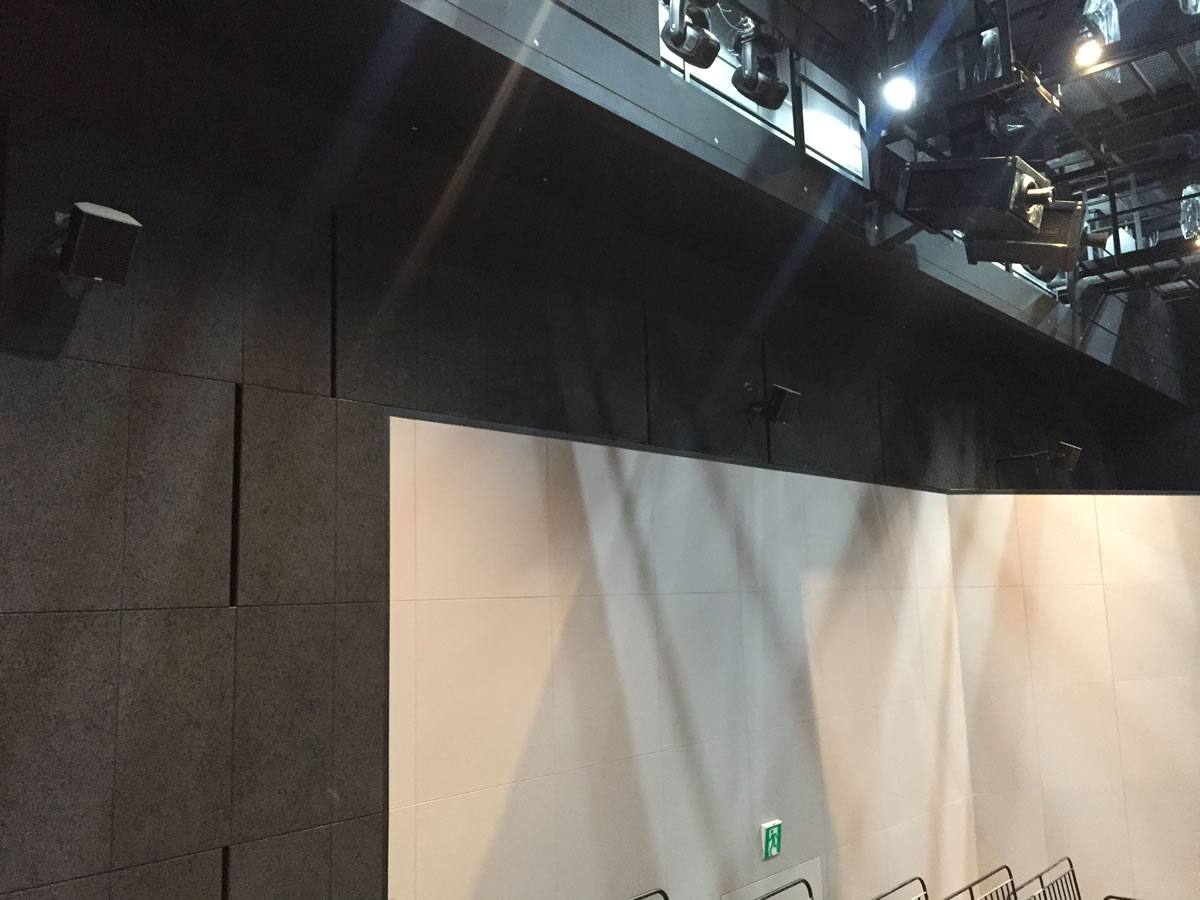

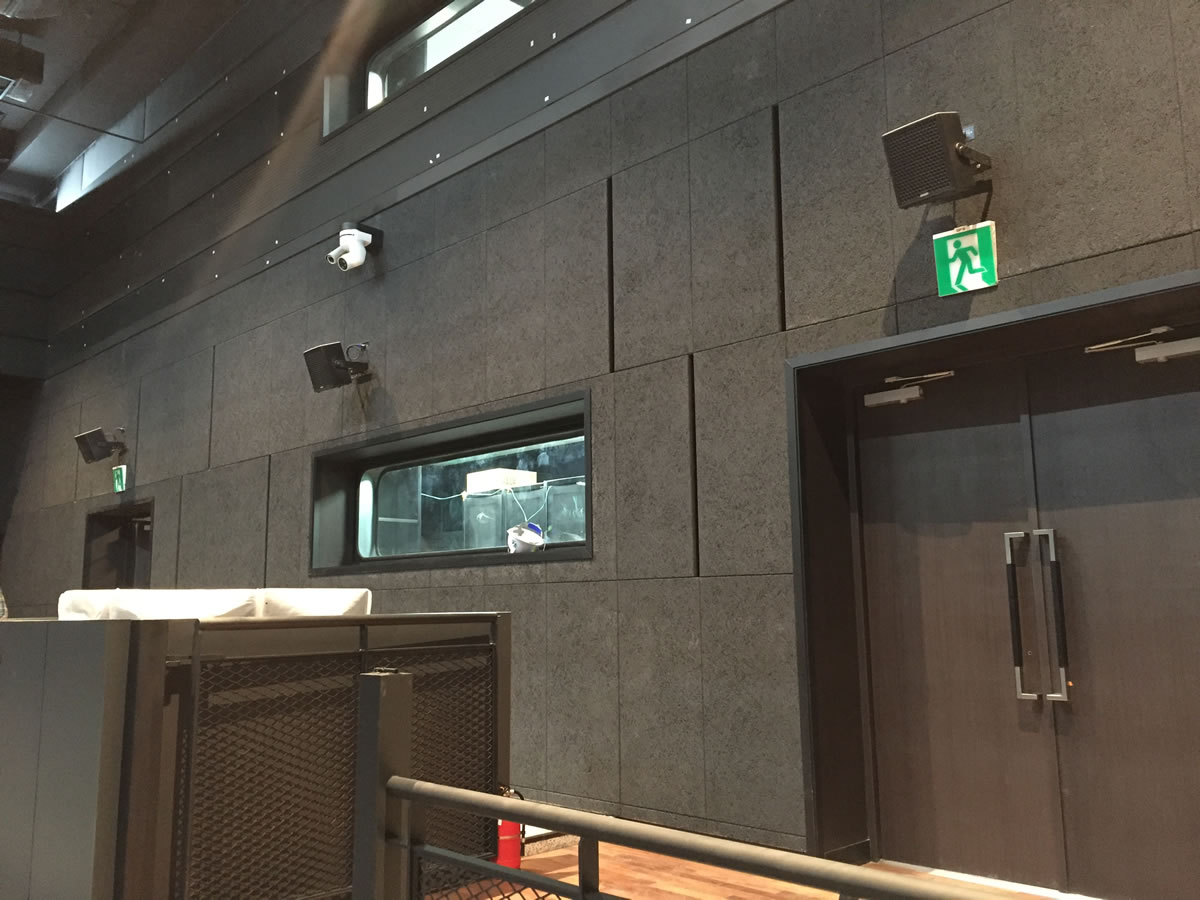

The seating area is designed to distribute the sound pressure level deviation to around ±2.0 dB, providing an optimized sound environment. It features a box-in-box design with double floors (STC 65), soundproofed ceilings (STC 83), and soundproofed walls (STC 67) to prevent performance noise from affecting other floors, exhibition areas, sales facilities, and more.

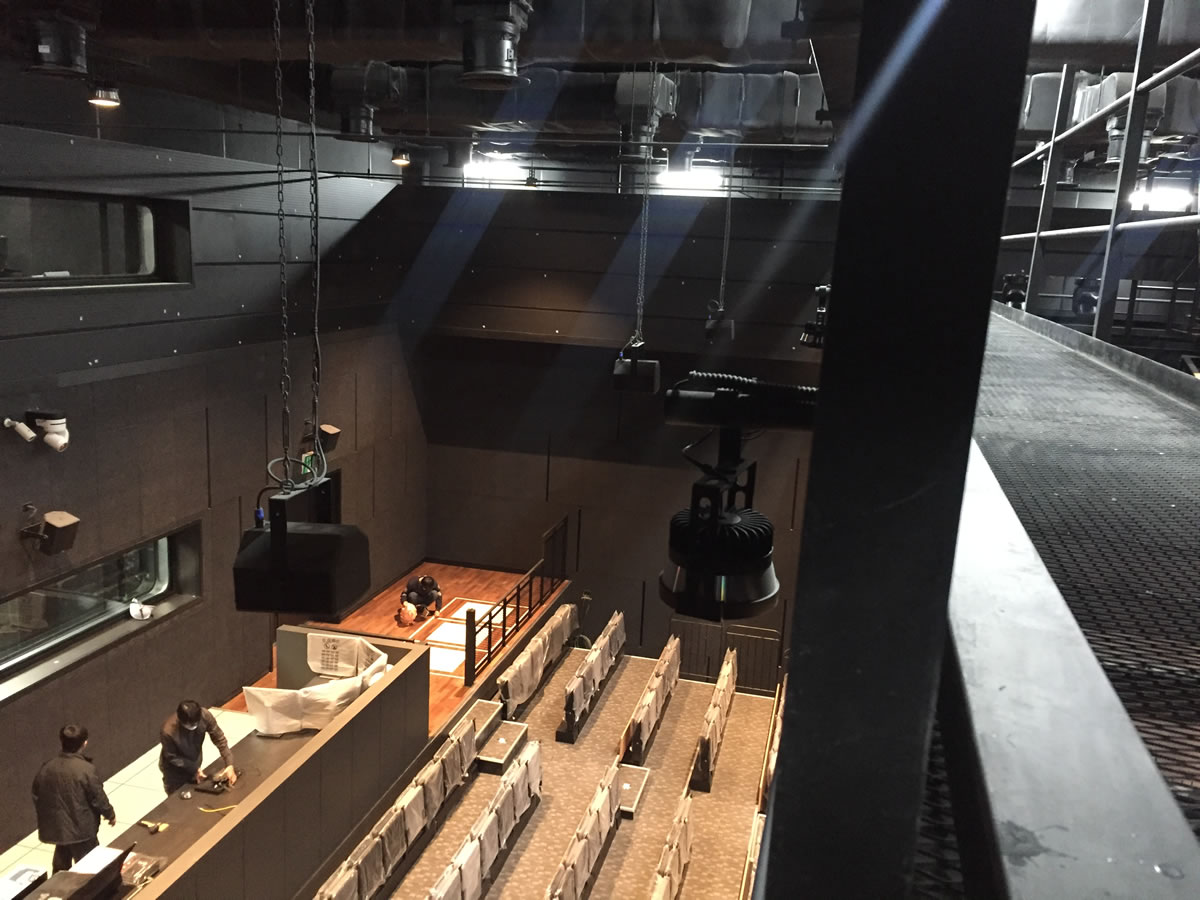

The seating includes retractable storage chairs installed on the walls. These chairs can be electrically extended from the wall-mounted storage position. The zigzag-shaped chairs have a seat height of 380mm, a front-to-back spacing of 900mm, and can withstand a maximum load of 500Kg/m2. The handrails are manually installed.
For immersive sound implementation, the theater is equipped with a 26.2-channel surround system in the seating area. Coaxial speakers are installed to ensure consistent directionality between high and low-frequency sounds. To deliver powerful low-frequency effects, 19-inch subwoofers are designed directionally.
A total of 11 projectors are used for hologram and screen content implementation. Three 4K 3DLP projectors with a brightness of 40,000 ANSI lumens are used for hologram projection, five WUXGA 3DLP projectors with a brightness of 25,000 ANSI lumens are used for surround screen projection, and three WUXGA 1DLP projectors with a brightness of 20,000 ANSI lumens are used for stage screen projection.
They have the ability to lead all processes. Anyone can see that their consulting, design, and construction capabilities are significantly superior to other companies.

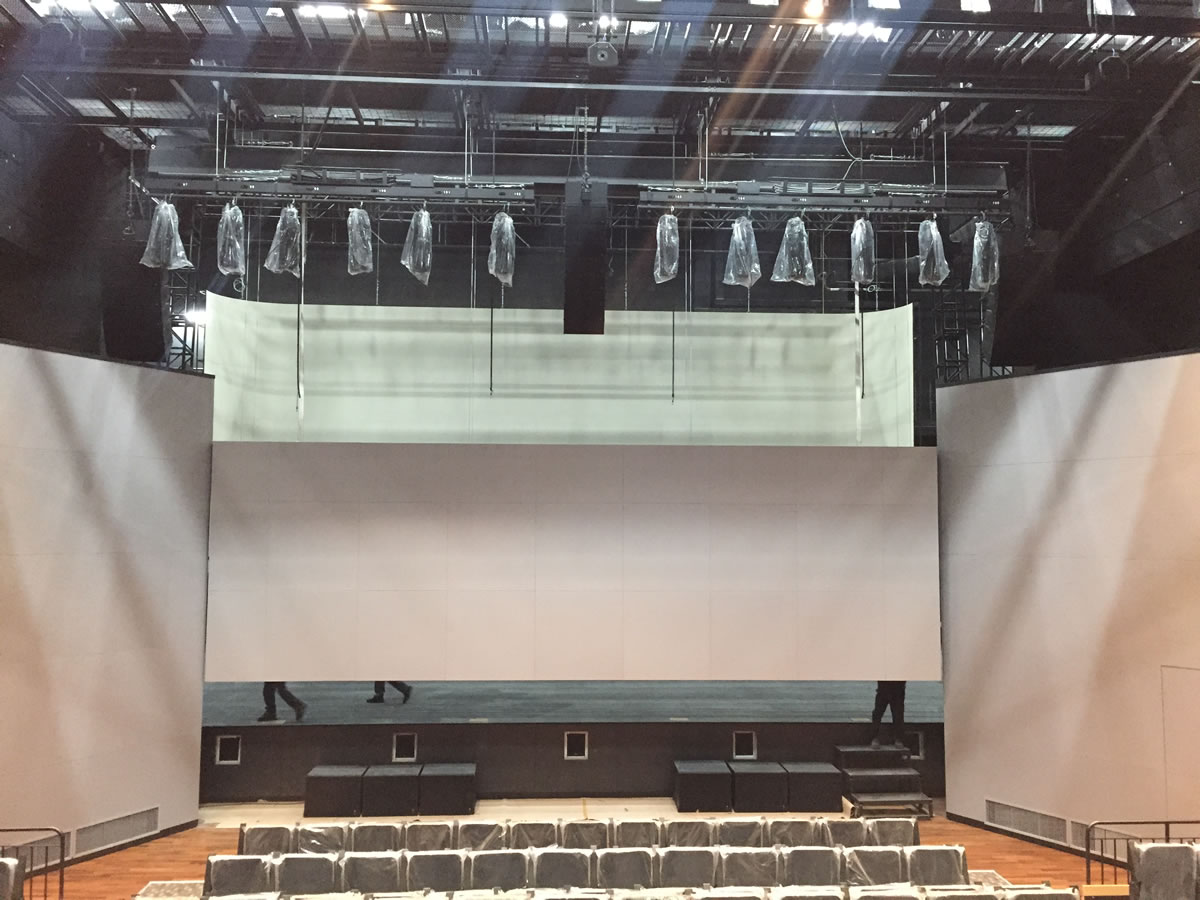

The upper stage machinery features fire curtains and 32 sets of battens (50m/min). The lower stage includes a movable stage for holographic silver screens and a sinking stage. Hologram screens for surround visuals, front roll screens, front façade screens, and rear screens are all in operation.
The stage lighting console consists of main and backup units, compatible with media servers for integrated operation. It includes 192 lighting dimmers, halogen lighting, two 1kW pin lights, lasers, fog machines, strobes, and moving lights. The seating area lighting includes 50W COB LED downlights controllable via DMX.
